Prelude: The notes provided here are not simply copied from the textbook. I select topics that suprise me, focusing on comparing the different explanations or examing practical applications. So I would omit many conventional definitions and derivations. I wil be very happy if these notes assist you in comprehending various concepts or understanding the underlying reasons.

9.12: My reading of chapter 2 is over. Here’s my lab repository: link. 9.13: Update some notes when doing lab1 9.14: Lab1 finished 9.20: Almost finish lab2 bomb and add simple summary for chapter 3 here. 9.26: Sorry for stopping updating these days… I will come back soon.

Chapter 1: Representing and Manipulating information

Two’s-Complement Encodings

The definition in the book is new to me:

For vector $\overrightarrow{x} = {x_{w-1}, x_{w-2}, \dots, x_0}$: $$B2T_w(\overrightarrow{x}) = -x_{w-1}2_{w-1} + \sum_{i=0}^{w-2}x_i 2^i$$

It means that when the most significant bit is 1, the number is counted from $-2^{w-1}$

As usually observed in Chinese textbook, reverse encoding is introduced to illustrate the concept of two’s complement encoding. In reverse encoding, for a non-negetive number $x = {0, x_{w-2}, \dots, x_0}$, the reverse encoding retains the same bits as $x$, but for negtive $x = {1, x_{w-2}, \dots, x_0}$, get reversed by bit except for the most significant bit representing for the sign.

Based on reverse encoding, the 2’s complement encoding of non-negtive numbers preserves the same bits. However, for negative numbers, this encoding is obtained by adding 1 to reverse encoding.

This is not intuitive, but we can establish the connection between this complex procedure with the origin definition, obtain the 2-complement encodings of -x, where x is non-negtive number.

For a non-negative number $x$ with 2’s complement encoding of ${0, x_{w-2}, \dots, x_0}$, suppose a negative number $y = x$ whose 2-complement encoding is ${1, y_{w-2}, \dots, y_0}$. So we have: $$-2^{w-1} + \sum_{i=0}^{w-2} y_i 2^i = -x$$

So the value of bits, except for the sign bit, is actually $2^{w-1} - x$. And the process of “reverse bit and add 1” euqals to “{1, 1, …, 1} - x + 1”. They are the same.

We can also find that the unsigned value of the 2’s complement encoding is $2^w - x$. That’s what “2’s complement” represents.

Shfiting

As it is widely known that it’s dangerous to convert between signed and unsigned value. And based on the 2’s complement encoding, here’re some behaviours:

void print(unsigned char *p, int len) {
    for (int i = 0; i < len; i++) {
        printf("%.2x,", *p);
        p+=1;
    }
}

int y = 2147483648;
// y = 0x80000000 = -1;
// print: 00, 00, 00, 80

y <<= 1;
// y = 0;

y = -1;
// 0xffffffff
y >>= 1;
// 0xffffffff still -1

y = 2147482647
// y = 0x7fffffff the largest number of int
y <<= 1;
// y = 0xfffffffe = -2

We can also find the operating system is little-endian.

Integer Arithmetic

Unsigned Arithmetic

Unsigned Addition is actually modular addition, which forms an abelian group. Although I know nothing about the theory of group, I would take it natural that the modular addtion has an identity element 0 and every element has an additive inverse, just like what we see in natrual numbers and vectors in linear algebra.

The following discussion is based on the hypothesis that $x$ and $y$ are unsigned integers represented by $w$ bits.

How to detect overflow?

We know that $x + y \geq x$ if there’s no overflow. And at “most” time the result will be smaller than $x$ if an overflow occurs. But is it possible that we may choose a $y$ that $x + y > 2^w > x$ ? No, unless $y > 2^w$ that will never happen.

So simply return x + y < x; is enough.

What’s the additive inverse of $x$?

This actually has been discussed in the previous section, “the unsigned value of the 2’s complement encoding is $2^w - x$”. Because the 2’s complement encoding of non-negtive value is the same to its binary representation ,and there’s no concept of “nagative” here, so everything is suitable here.

But this proof is still too complicated. A intuitive explanation is, in unsigned addition we have $2^w = 0$. $x + (-x) = 2^w$, so $(-x) = 2^w - x$.

Two’s Complement Arithmetic

The textbook dedicates to build the relationship between number, code and arithmetic. There’re many aspects when discussing computation on two’s complement encoding.

It’s a lot of gossip here, hope I can make my point…

Calculation on numbers. This is the same as what we do on paper. -128 + (-1) should be -129 instead of 127.
Encoding numbers to bits. This process is a function or mapping. The actual calculation working on the mapped bits.
Calculation on bits. No matter what kind of encoding method the computer uses, the arithmetic on binary bits remains the same. So it’s natrual to add an extra abstract layer, converting mapped bits to unsigned integer. The unsigned integer arithmetic follows the intuitive rules with modular.
So we can make a workflow of this procecure:
x , y -> two’s complement code -> unsigned code -> operate -> two’s complement code -> result number z
Encoding number to two’s complement form. This is what computer stores in the memory.
Converting two’s complement code to unsigned code. In fact the elements in the bits are not changed. But the operations on bits are intuitive for unsigned code instead of two’s >complement code.
Applying calculation on bits.
Converting the result bits to numbers. Just following the definition of two’s complement encoding.
So here comes the property of two’s complement arithmetic:
Recalling the definition of two’s complement encoding, we have the formular converting two’s complement encoding to unsigned: $T2U(x) = x + bit_{w-1} 2^{w}, U2T(x) = x - bit_>{w-1}2^w$.
It may be a little bit confusing. What is $x$? $x$ is the value reprensented by different encoding method. So the domain is actually different in the two formulars above.
$U(x), T(x)$ here represents the value of usigned form no matter which encoding method it is.
Notice that negative number $(-x)$ represented in unsigned number is $2^w - x$. Eg. $T2U(-128) = 128$

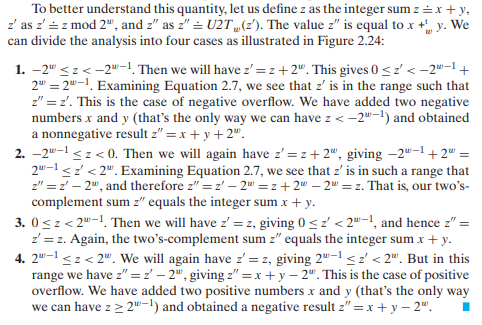

Sigh, I find I can’t explain better than the textbook. And I also suggest that you can derivate the following cases by yourself. It will help you understand these encodings better.

Notice that two’s complement arithmetic also forms an abelian group. You may be curious about what is the inverse of -128, it’s itself. (Ok the textbook mentioned this…)

And a good practice is, try to extend these theory to inverse code, which only use the most significant bit as sign bit, and find out why it’s not a good choice for number representation in computer.

Multiplication and Division

Multiplication and division of unsigned integer is very simple, so I just omit them here.

The derivation of the equality of multiplication between unsigned and 2’complement representation is similar to the two’s complement arithmetic. It worth reading and derivating on your own.

And I want to provide an intuitive perspective on the division of two’s complement of negative number.

It’s obviously that the result of shifting integer is rounded down from the exact result in real number. But what we need is actually the “truncating result”. Truncating $45.5$ is the same as $round(45.5) = 25$. But for negative number, $round(-25.5) = -26 != 25$. So we can use some bias to make it.

For a bit vector with length $w$: ${b_{w-1}, \dots, b_0}$. If we shift it right k bit, it will become ${b_{w-1}, \dots, b_k . ,b_k-1 , b_0}$, where the sub-bits ${b_k-1 , b_0}$ forms the dicimal part. If none of these sub-bits is $1$, the result is what we want. But if one bit equals to 1, the decimal part is larger than 0. At this time we can simply add 1 to the final rounding result.

So the problem turns to “Is there any bits equaling to 1 in the last k bits?”. So we just add an extra bias $(1 « k) - 1$, which will contributes to the $b_k$ bit if such bit exists.

Floating Point

It’s highly recommended to read the related content in the textbook carefully. Maybe in the future I will derivate the definition and property again in this section.

Lab1: data lab

Most of the thoughts are written in the comment of the source code bits.c. Some interesting experience or discovery will be recoreded here.

I personaly don’t suggest spending a lot of time on it. Because this is too tricky to use in common development. You may find the result is unexpected using different compilers on various environments. Here is my own experience.

I simply copied what I submitted on the Gcc Bugzilla, where people post mistakes they find on gcc compilers.

I happened to find this problem when I did the CSAPP lab.

int isTmax(int x) {
  // make it all of 1
  // it's quite strange that the results of x + 1 + x and x + x + 1 are different
  int c = x + x + 1;
  // check if it's all of 1
  int flag_all_ones = !(~c);
  // avoid -1
  int flag_not_neg1 = !!(x + 1);
  return flag_all_ones & flag_not_neg1;
}

This function will be incorrectly optimized to return zero only with "-O2" compiler flag.
But in fact isTmax(0x7fffffff) should return 1. Here's the disassembly code using coredump:

000012ac <isTmax>:
  // check if it's all of 1
  int flag_all_ones = !(~c);
  // avoid -1
  int flag_not_neg1 = !!(x + 1);
  return flag_all_ones & flag_not_neg1;
}
    12ac:	b8 00 00 00 00       	mov    $0x0,%eax
    12b1:	c3                   	ret

This function can be correctly compiled with no compiler optimization (-O0).
And this behaviour always occurs using the latest 2 version gcc compiler (from 11.0 to 12.0).
But using clang or msvc, everything works well.

And an engieer replied quickly:

Signed integer overflow is undefined behavior.

Use -fwrapv or unsigned to do the addition to get the behavior you want.

Lol, UB again.

Chapter 3: Machine-Level Representation

This is a quite boring chapter. Reading manual of instructions is very very boring. I still believe you can simply take these contents as manual, where you can look up things you happen meet. And you will be experienced dealing with those pattern. If you have taken courses like CS161 before, it’s enough for you to do the lab bomb.

The final several sections are worth reading. If you have to work with languages like c or cpp, great care have to be taken reading Heterogeneous Data Structures (I know nothing about front-end development. Maybe it’s euqally important in that field). Combining Control and Data in Machine-Level Programs makes brief discussion on the topic that CS161 involved. If you had read these before, maybe it would be easier in that summer. My bad.

About Lab2: I don’t think it’s as fun as exploiting in CS161. Those functions are all about logic. Given a lot of meaningless code and control flow, you have to find the right hole and jump into it.

I did all the lab by static analysis, which is just reading the code and figure out how they actually work. Because all the information you need is in the disassembled code and there’re no runtime
